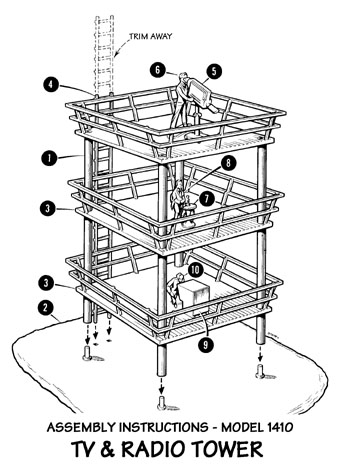

- Install the four tubular columns 1 on base 2 by pressing each of the columns into one of the base lugs.
- Line up the holes in one of the platforms 3 with the tops of the columns then carefully slide the platform downwardly until it is about 3/8 inch above the base.
- Install the two remaining platforms on the columns leaving the uppermost platform flush with the column upper ends. Adjust the center platform along the columns to a position midway between the upper and lower platforms. If you wish the platforms may now be permanently fixed to the columns with a small dab of model airplane cement on the platform under-surfaces.
- Determine the correct length for the ladder 4 by installing it temporarily. After marking the length remove the ladder and carefully cut off the excess. The ladder may now be cemented into the base and against the top rail of each platform.
- Install TV camera 5 and cameraman 6 on the uppermost platform, the microphone 7 and announcer 8 on the center platform. Cement a small piece of paper over the opening on the rear of the TV monitor 9 then install it and the director 10 on the lower platform.
Atlas HO Slot Car Racing Track Layout Scenery 1410 TV & Radio Tower Assembly Instructions
