Sunday, February 28th, 2010

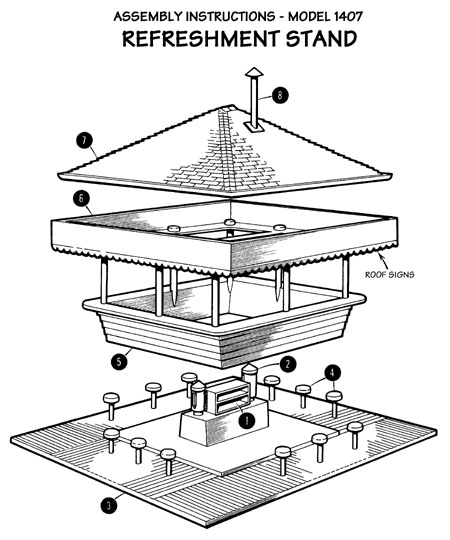

- Cement shelves 1 and coffee urns 2 to base 3.
- Cement stools 4 to the base.
- Install counter walls 5 on the base.
- Apply printed signs to roof signs 6 then cement the roof signs to the columns of the counter wall.
- Install roof 7 and smoke jack 8.
Atlas HO Slot Car Racing Track Layout Scenery 1407 Refreshment Stand Assembly Instructions
Tags: 1407, assembly, Atlas, base, coffee urns, counter walls, HO, instructions, model, refreshment stand, roof, roof signs, shelves, smoke jack, stools
Posted in Atlas HO Slot Car Racing | No Comments »
Saturday, February 27th, 2010
- Before beginning assembly apply all the decorative stickers called for on the drawings. Important! The two signboards 6 are not interchangeable. Apply the FIRST AID STATION sign to the signboard which has the small locating lug nearest the end of the signboard.
- Cement the fire extinguishers 1 on building 2 as shown. Check the drawings to be sure you get the correct side.
- Cement a bench 3 on each side of the building.
- Install the building on base 4.
- Install roof 5.
- Install roof signs 6.
- Apply the red cross flag to the pole on siren 7 then cement the siren into roof cavity.
- Install tank 8, stretcher 9 and oxygen tanks 10.
Atlas HO Slot Car Racing Track Layout Scenery 1406 First Aid Station Assembly Instructions
Tags: 1406, assembly, Atlas, bench, fire extinguishers, first aid station, HO, instructions, model, oxygen tanks, red cross flag, siren, stretcher, tank
Posted in Atlas HO Slot Car Racing | No Comments »
Friday, February 26th, 2010
- Before beginning assembly apply all the decorative stickers called for on the drawing.
- Install building 1 on base 2.

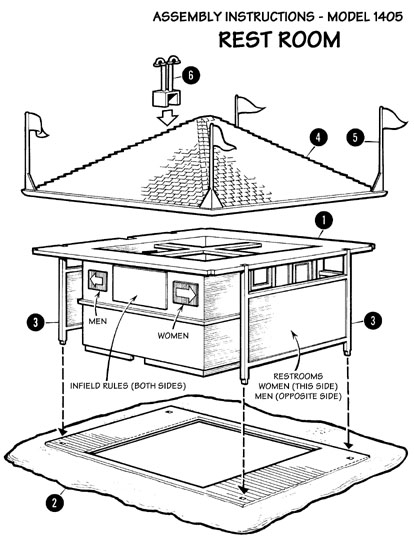

- Install the left and right hand blinder panels 3 as shown with the small lugs facing downwardly and with the shorter end panel of each blinder next to the door.
- Install roof 4.
- Apply pennants to poles 5 at the same time determining the location of each pole so that the pennants will all flutter in the same general direction; then cement the poles into the gutters at the roof corners.
- Install vents 6.
Atlas HO Slot Car Racing Track Layout Scenery 1405 Rest Room Assembly Instructions
Tags: 1405, assembly, Atlas, blinder panels, HO, instructions, model, pennants, poles, stickers, vents
Posted in Atlas HO Slot Car Racing | No Comments »
Thursday, February 25th, 2010
- Before beginning assembly apply all the decorative stickers called for on the drawing.
- Install building 1 on base 2.

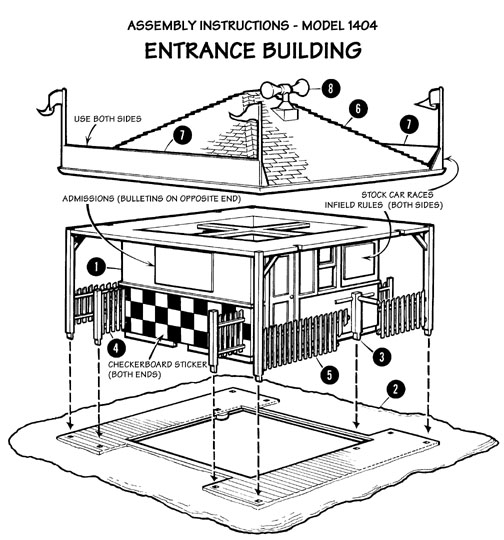

- Cement the two turnstiles 3 in place.
- Install the four short picket fences 4. Note that there are two left hand and two right hand fences which should be installed as shown in the drawing. Install the two long picket fences 5.
- Install roof 6.
- Apply pennants to poles on roof signs 7. Determine proper location for each sign then apply the pennants so that they all appear to flutter in the same general direction. Cement the signs to the roof gutters as shown.
- Install the loudspeaker 8.
Atlas HO Slot Car Racing Track Layout Scenery 1404 Entrance Building Assembly Instructions
Tags: 1404, assembly, Atlas, HO, instructions, loudspeaker, model, pennants, picket fences, poles, stickers, turnstiles
Posted in Atlas HO Slot Car Racing | No Comments »
Wednesday, February 24th, 2010

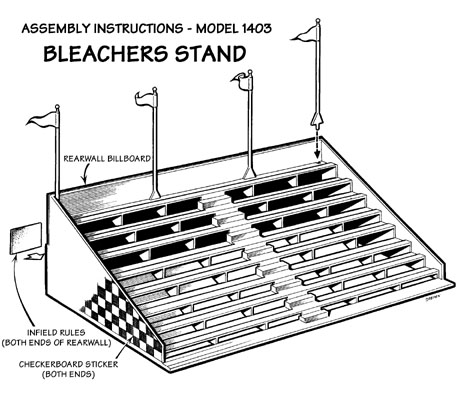

- Apply the decorative stickers as called for on the drawing below.
- Apply pennants to the four poles.
- Cement poles into small holes along uppermost plank.
Atlas HO Slot Car Racing Track Layout Scenery 1403 Bleacher Stand Assembly Instructions
Tags: 1403, assembly, Atlas, HO, instructions, model, pennants, poles, stickers
Posted in Atlas HO Slot Car Racing | No Comments »
Tuesday, February 23rd, 2010
- Before beginning assembly apply all the decorative stickers as called for in the second sketch below.

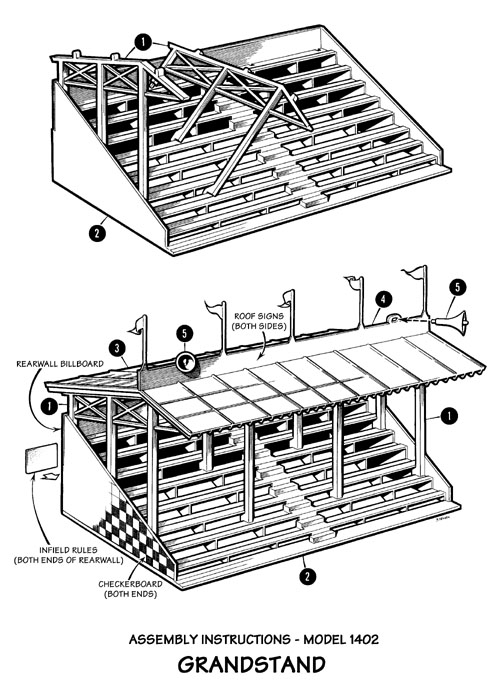

- Install the roof trusses 1 on base 2. There are two left hand trusses and two right hand trusses each of which is molded with its cross members recessed on one side and flush on the opposite. All trusses should be installed with their flush side facing the steps at the center of the base. The trusses are installed as follows: Hold a truss on an angle as shown in the first sketch below, then insert the offset lug at the bottom of the long column between the third and fourth boards from the bottom. Similarly, insert the lug of the middle column between the sixth and seventh boards from the bottom. Then rotate the truss to vertical and carefully slide it into its location allowing the small lug at the bottom of the rear column to drop into its respective hole.
- Install roof 3.
- Apply pennants to poles of signboard 4 then install the signboard on the roof.
- Cement loudspeakers 5 into small loops on signboard. Turn the loudspeakers so that they face slightly away from each other.
Atlas HO Slot Car Racing Track Layout Scenery 1402 Grandstand Assembly Instructions
Tags: 1402, assembly, Atlas, grandstand, HO, instructions, loudspeakers, model, pennants, roof, signboard, stickers, trusses
Posted in Atlas HO Slot Car Racing | No Comments »
Monday, February 22nd, 2010
After you designed and built your HO slot car track layout you needed some scenery to enhance it. You could purchase individual model kits and accessories to accomplish this task. Atlas also condensed and repackaged all of their scenery into two large accessory sets and named them the Landau & Grand Prix. The Landau set was comprised of the Bleachers Stand, 24 Figures, Officials Stand, Refreshment Stand, TV & Radio Tower, 4 Hedges & 12 Bales of Hay. If you, the hobbyist, intended to buy all of these structures & accessories separately purchasing the Landau HO Motoring Accessory Set 1401-595 provided a better value as it saved you almost 11% over the individual retail prices. The overall dimensions of the box is 18 inches long by 14 inch wide by 2 inches tall.
Atlas HO Slot Car Racing Track Layout Accessory Set Landau
Tags: 1401, accessory, bales of hay, bleacher stand, figures, hedges, Landau, officials stand, refreshment stand, tv & radio tower
Posted in Atlas HO Slot Car Racing | No Comments »
Sunday, February 21st, 2010
After you designed and built your HO slot car track layout you needed some scenery to enhance it. You could purchase individual model kits and accessories to accomplish this task. Atlas also condensed and repackaged all of their scenery into two large accessory sets and named them the Grand Prix & Landau. The Grand Prix set was comprised of the Grandstand, Entrance Building, Rest Room, First Aid Station, Pit Stop with Accessories, 4 Hedges & 12 Bales of Hay. If you, the hobbyist, intended to buy all of these structures & accessories separately purchasing the Grand Prix HO Motoring Accessory Set 1400-595 provided a better value as it saved you almost 10% over the individual retail prices.
Atlas HO Slot Car Racing Track Layout Accessory Set Grand Prix
Tags: 1400, accessory, bales of hay, entrance building, figures, first aid station, Grand Prix, grandstand, hedges, pit stop, rest room
Posted in Atlas HO Slot Car Racing | No Comments »
Saturday, February 20th, 2010
With just a few packages each of the bales of hay you will be able to quickly add some very attractive touches of authenticity to your motor raceway. Generally speaking, the hay bales are located along the turns where a spectator area is located. The hay bales should be stacked in front of any track side structure such as an Officials Stand or a TV & Radio Tower and also between the track and your Grandstands. The hay bales protecting the grandstand spectators should be arranged in a fairly orderly straight line with an occasional bale knocked out of alignment. In front of the other buildings the bales look best if not too uniformly arranged. Technically speaking, each one of these beautifully molded scenery sections are a hay bale bundle each consisting of 12 hay bales. Each fulvous colored hay bale bundle is soft and pliable and measure 1-5/8 inches long by 3/8 inch tall by 1/2 inch wide at the base and tapers to 7/16 inch at the top.
Atlas HO Slot Car Racing Track Layout Accessories 12 Bales Of Hay
Tags: bales of hay, crash barriers, grandstands, hay bale bundle, hay bales, officials stand, stacked, tv & radio tower
Posted in Atlas HO Slot Car Racing | No Comments »
Friday, February 19th, 2010
With just a few packages each of the colorful green hedges you will be able to quickly add some very attractive touches of authenticity to your motor raceway and, at the same time, protect your autos from damage should any of them leave the track on a fast turn. Generally speaking, the hedges are usually planted along the outside of any turn. If you like, the hedges may be secured in place with very small nails. Use flat head nails and not brads. Each hedge is soft and pliable and measure 5-3/4 inches long by 1 inch tall by 1/2 inch wide at the base.
Atlas HO Slot Car Racing Track Layout Accessories 4 Hedges
Tags: green, hedges, planted, raceway, turns
Posted in Atlas HO Slot Car Racing | No Comments »
